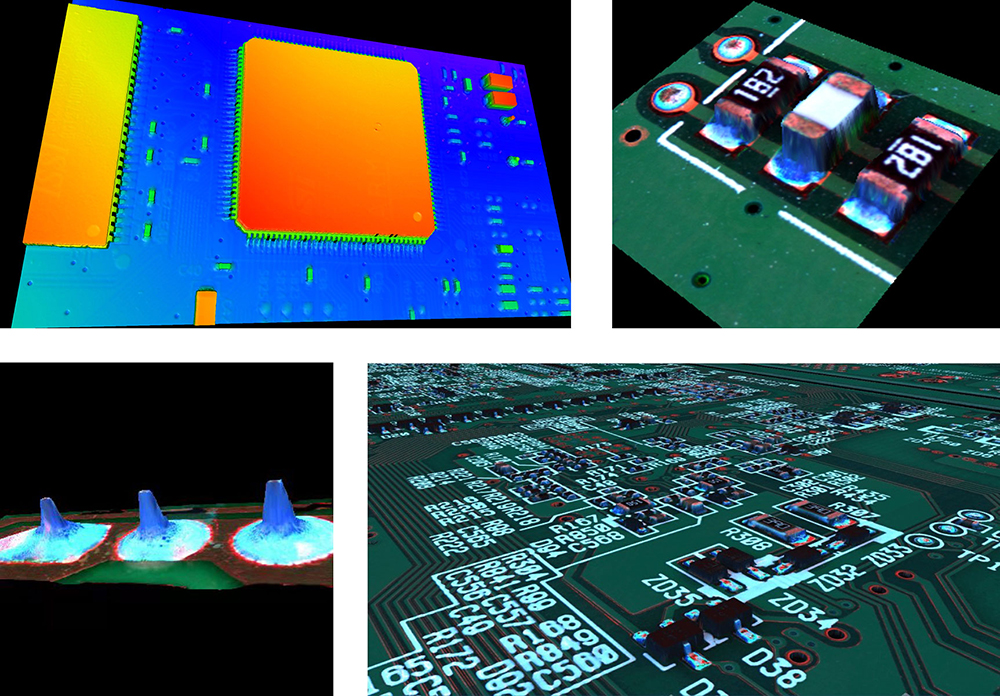

High speed 3D structured light projection, real-time Edge Computing 3D image reconstruction mode
Full hardware calculation does not occupy system resources. Internally complete the 3D reconstruction calculation of multiple captured images and directly output 3D point cloud after stitching and fusion.
Omni-directional projection system, eliminate the problems resulting from shadows
AC Servo Motor + precision ball screw with linear guide set
Large aperture telecentric lens, no squint, low distortion, large depth of field
Comparative analysis of SPI and pre-reflow AOI, post-reflow AOI three point image , improve processing
Multiple programming software runs in multi-threads, realizing offline programming without stopping
Output,save and trace all the entire PCB image
AI deep learning and algorithm application, enhance detection coverage, reduce failure rate
High speed 3D projection image reconstruction technology, the industry’s first real time Edge Computing 3D image reconstruction mode based on FPGA (field programmable gate array) architecture.
